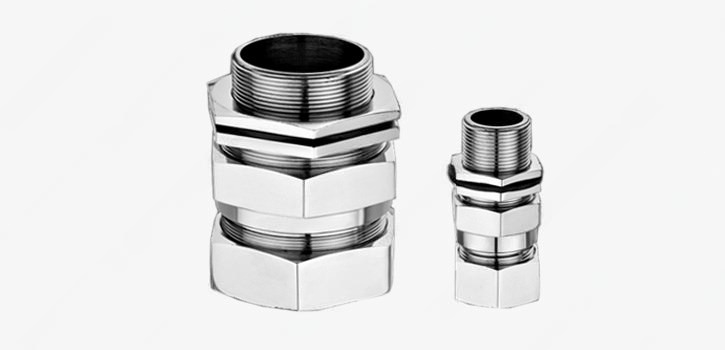

Flame Proof Double Compression Glands are generally used in flammable gas / vapours area (for gas group I, IIA & IIB) as well as in normal climatic conditions also which are weather proof, water proof and dust proof (IP-66) which can be used in Hazardous climatic condition. Also when protected by PVC shrouds it can be used in corrosive atmosphere. These glands are suitable for all types of cables like Armour , Unarmour, Power, Instrumention, XLPE etc.
| SIZE | AEFP01SSA TO AEFP 016 |
| ENTRY THREAD | METRIC |
| ALTERNATE THREAD | NPT, BSC ET, PG, METRIC, BSP |
| ENTRY THREAD RANGE | 1/2" TO 4.5" OR M12 TO M110 |
| GLAND MATERIAL | BRASS (IS-319) |
| ALTERNATE MATERIAL | ALUMINIUM, S.S, M.S |
| OPERATING TEMPERATURE | -30 C TO +100 C |
| FINISH | NICKEL PLATED |
| ALTERNATE FINISH | TIN, CHROME |
| SEAL MATERIAL | NEOPRENE / SILICON |
| SEAL SHORE HARDNESS | 50 - 60 |
| ACCESSORIES | SHROUD, EARTH TAG, STOPPER,REDUCER,ADAPTORS (SUPPLIED SEPARATELY UPON REQUEST) |
| GLAND STANDARD | BS 6121 , IS/IEC 60079-0:2011 ,IS/IEC 60079-1:2007 (Reaffirmed : 2012) |
| FLAMEPROOF PROTECTION | IS/IEC 60079-1:2007 (Reaffirmed : 2012) |
| INGRESS PROTECTION | IP 66 AS PER IS/IEC 60529:2001 (Reaffirmed 2014) |
| APPROVAL | OUR AEFP SERIES CABLE GLANDS ARE APPROVED BY CSIR-CENTRAL INSTITUTE OF MINING AND FUEL RESEARCH –DHANBAD |
- LOCK NUT
- ENTRY SEAL RING
- GLAND NIPPLE
- INNER SEAL RING
- ARMOUR CLAMPING RING
- GLAND BODY
- OUTER SEAL
- COMPRESSION NUT

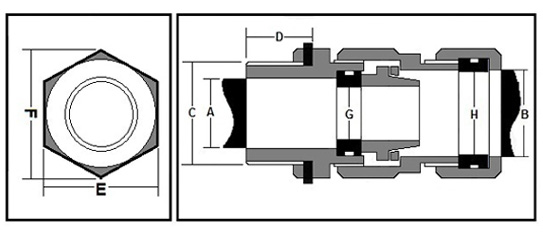

| No | SIZE | H | G | E | F | C (THREAD) | D | CABLE DIMENSION | ||
| (A/F) | (A/C) | ET | MM | (THREAD LENGTH) | A UNDER ARMOUR DIA | B OVERALL DIA |
||||
| 1 | SFP 01SSA | 12.00 | 8.50 | 19.50 | 22.50 | 1/2"ET | M12 | 25 | 8.00 | 10.0 |
| 2 | SFP 01SS | 13.50 | 9.00 | 22.00 | 25.00 | 3/4"ET | M20 | 25 | 8.00 | 12.0 |
| 3 | SFP 01S | 17.50 | 11.00 | 25.00 | 29.00 | 3/4"ET | M20 | 25 | 10.00 | 16.5 |
| 4 | SFP 01 | 19.50 | 14.50 | 27.50 | 32.00 | 3/4"ET | M20 | 25 | 12.50 | 18.0 |
| 5 | SFP 01A | 19.50 | 14.50 | 27.50 | 32.00 | 1"ET | M25 | 25 | 12.50 | 18.0 |
| 6 | SFP 02 | 21.00 | 16.00 | 29.00 | 34.00 | 1"ET | M25 | 25 | 14.00 | 20.0 |
| 7 | SFP 02A | 21.00 | 16.00 | 29.00 | 34.00 | 3/4"ET | M20 | 25 | 14.00 | 20.0 |
| 8 | SFP 03 | 23.50 | 18.00 | 31.00 | 36.00 | 1"ET | M25 | 25 | 16.00 | 23.0 |
| 9 | SFP 04 | 27.50 | 21.00 | 37.00 | 43.00 | 1"ET | M25 | 25 | 19.00 | 26.0 |
| 10 | SFP 04A | 27.50 | 21.00 | 37.00 | 43.00 | 1.1/4"ET | M32 | 25 | 19.00 | 26.0 |
| 11 | SFP 05 | 31.50 | 25.00 | 41.00 | 47.00 | 1.1/4"ET | M32 | 25 | 23.00 | 30.0 |
| 12 | SFP 05A | 31.50 | 25.00 | 41.00 | 47.00 | 1.1/2"ET | M40 | 25 | 23.00 | 30.0 |
| 13 | SFP 06 | 34.00 | 28.00 | 46.00 | 53.00 | 1.1/2"ET | M40 | 25 | 26.00 | 33.0 |
| 14 | SFP 06A | 34.00 | 28.00 | 46.00 | 53.00 | 1.1/4"ET | M32 | 25 | 26.00 | 33.0 |
| 15 | SFP 07 | 38.00 | 31.00 | 50.50 | 58.00 | 1.1/2"ET | M40 | 25 | 29.00 | 37.0 |
| 16 | SFP 08 | 42.00 | 36.00 | 56.00 | 64.00 | 2"ET | M50 | 25 | 34.00 | 41.0 |
| 17 | SFP 09 | 47.00 | 41.00 | 59.00 | 67.00 | 2"ET | M50 | 25 | 39.00 | 46.0 |
| 18 | SFP 010 | 53.00 | 45.00 | 66.00 | 76.00 | 2"ET | M50 | 25 | 43.00 | 52.0 |
| 19 | SFP 010A | 53.00 | 45.00 | 66.00 | 76.00 | 2.1/2"ET | M63 | 25 | 43.00 | 52.0 |
| 20 | SFP 011S | 57.50 | 51.00 | 74.00 | 85.00 | 2.1/2"ET | M63 | 25 | 49.00 | 56.0 |
| 21 | SFP 011 | 61.50 | 55.00 | 79.00 | 92.00 | 2.1/2"ET | M63 | 25 | 53.00 | 60.0 |
| 22 | SFP 012 | 68.00 | 62.00 | 84.00 | 97.00 | 3"ET | M75 | 25 | 60.00 | 66.0 |
| 23 | SFP 013A | 74.00 | 67.00 | 90.00 | 103.00 | 3"ET | M75 | 25 | 65.00 | 72.0 |
| 24 | SFP 013 | 79.00 | 73.00 | 99.00 | 113.00 | 3.1/4"ET | M82 | 25 | 71.00 | 78.0 |
| 25 | SFP 014 | 86.00 | 80.00 | 105.00 | 122.00 | 3.1/2"ET | M90 | 25 | 78.00 | 84.0 |
| 26 | SFP 015 | 96.00 | 89.00 | 116.00 | 134.00 | 4"ET | M100 | 25 | 87.00 | 94.0 |
| 27 | SFP 016 | 106.00 | 103.00 | 130.00 | 149.00 | 4.1/2"ET | M110 | 25 | 10.00 | 104.0 |
