These Glands Are Used With Both Indoor And Outdoor, In All Climatic Conditions As It Is Weatherproof & Dust Proof. These Glands Are Available In Different Sizes And Suitable For All Cables Up To 1000 Sq.Mm And Control Cables Up To 61 Cores.
| SIZE | AE 1 (5/8”-M16) To AE 20 (5” – M125) |
|---|---|
| ENTRY THREAD | METRIC(MM) AS PER IS-4218 |
| ALTERNATE THREAD | ET, NPT, PG, METRIC, BSP |
| GLAND MATERIAL | BRASS (IS-319) |
| ALTERNATE MATERIAL | ALUMINIUM, S.S, M.S |
| OPERATING TEMPERATURE | -30 C TO +100 C |
| FINISH | NICKEL PLATED, ALTERNATE, TIN, CHROME |
| SEAL MATERIAL | NATURAL / NITRILE |
| ACCESSORIES | SHROUD, EARTH TAG (SUPPLIED SEPARATELY UPON REQUEST) |
| GLAND STANDARD | IS-12943:2010 & BS:6121, IS/IEC 60529:2001 (Reaffirmed 2014) |
| INGRESS PROTECTION | IP 65 AS PER IS/IEC 60529:2001 |
| APPROVAL | SECURE AE SERIES CABLE GLANDS ARE APPROVED BY CSIR-CENTRAL INSTITUTE OF MINING AND FUEL RESEARCH –DHANBAD |
- LOCK NUT
- GLAND BODY
- GLAND BUSH
- MS WASHER (3 NOS)
- RUBBER SEAL

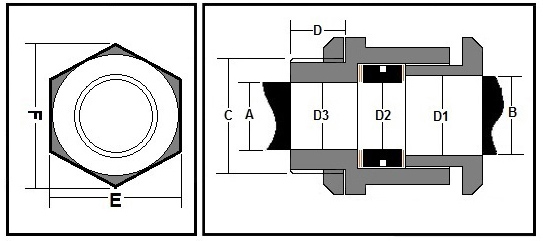

| SIZE SECURE | A/F | A/C | D1 | D3 | D2 | C | D | CABLE DIMENSION | |
|---|---|---|---|---|---|---|---|---|---|
| BUSH ID | ENTRY ID | RUBBER ID | (THREAD) | A UNDER ARMOUR DIA | B OVERALL DIA |
||||
| AE 1 | 22.0 | 25.0 | 16.0 | 12.0 | 12.0 | M16x1.5 | 9.00 | 11.0 | 14.0 |
| AE 2 | 25.0 | 29.0 | 18.5 | 12.0 | 15.0 | M16x1.5 | 9.00 | 11.0 | 16.5 |
| AE 3 | 25.0 | 29.0 | 18.5 | 15.0 | 15.0 | M20x1.5 | 9.00 | 14.0 | 16.5 |
| AE 4 | 29.5 | 34.0 | 23.0 | 15.0 | 18.0 | M20x1.5 | 9.50 | 14.0 | 21.0 |
| AE 5 | 29.5 | 34.0 | 23.0 | 21.0 | 20.0 | M25x1.5 | 9.50 | 20.0 | 21.0 |
| AE 6 | 35.0 | 40.5 | 28.0 | 21.0 | 24.0 | M25x1.5 | 10.0 | 20.0 | 24.0 |
| AE 7 | 40.0 | 46.0 | 33.0 | 27.0 | 28.0 | M32x1.5 | 12.0 | 26.0 | 31.0 |
| AE 8 | 46.0 | 53.0 | 37.0 | 33.0 | 32.0 | M40x1.5 | 12.0 | 32.0 | 35.0 |
| AE 9 | 49.0 | 57.0 | 41.0 | 33.0 | 37.0 | M40x1.5 | 12.0 | 32.0 | 39.0 |
| AE 10 | 58.0 | 67.0 | 47.0 | 44.0 | 42.0 | M50x1.5 | 13.0 | 43.0 | 45.0 |
| AE 11 | 65.0 | 75.0 | 52.0 | 44.0 | 48.0 | M50x1.5 | 13.0 | 43.0 | 50.0 |
| AE 12 | 73.0 | 84.0 | 61.0 | 55.0 | 54.0 | M63x1.5 | 14.0 | 54.0 | 59.0 |
| AE 13 | 76.5 | 89.0 | 64.5 | 55.0 | 60.0 | M63x1.5 | 14.0 | 54.0 | 62.5 |
| AE 14 | 85.0 | 98.0 | 71.0 | 66.0 | 66.0 | M75x1.5 | 15.0 | 65.0 | 69.0 |
| AE 15 | 90.0 | 104.0 | 76.0 | 66.0 | 72.0 | M75x1.5 | 15.0 | 65.0 | 74.0 |
| AE 16 | 96.5 | 112.0 | 82.5 | 73.0 | 78.0 | M82x1.5 | 17.0 | 72.0 | 80.5 |
| AE 17 | 108.0 | 124.0 | 91.0 | 81.0 | 84.0 | M90x1.5 | 19.0 | 80.0 | 89.0 |
| AE 18 | 117.0 | 135.0 | 98.0 | 91.0 | 92.0 | M100x2.0 | 20.0 | 90.0 | 96.0 |
| AE 19 | 127.0 | 146.0 | 107.0 | 100.0 | 100.0 | M110x2.0 | 25.0 | 99.0 | 105.0 |
| AE 20 | 142.0 | >164.0 | 118.0 | 113.0 | 115.0 | M125x2.0 | 25.0 | 112.0 | 116.0 |
