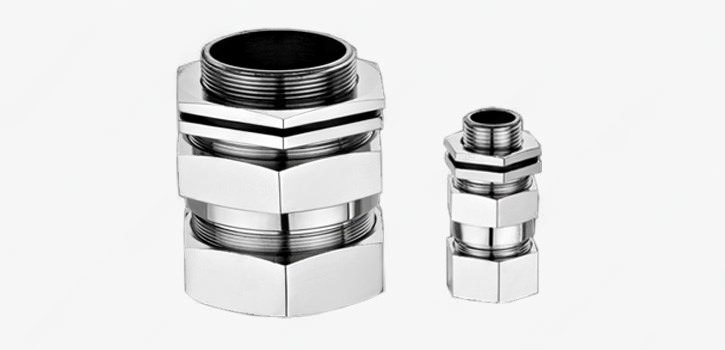

These Glands Are Used With Both Indoor And Outdoor, In All Climatic Conditions As It Is Weatherproof & Dust Proof. These Glands Are Available In Different Sizes And Suitable For All Cables Up To 1000 Sq.Mm And Control Cables Up To 61 Cores.
| SIZE | AEWP01SSA TO AEWP 016 |
|---|---|
| ENTRY THREAD | BSC ET ,ALTERNATE THREAD : NPT, PG, METRIC, BSP |
| ENTRY THREAD RANGE | 1/2" TO 4.5 “ OR M12 TO M110 |
| GLAND MATERIAL | BRASS (IS-319) |
| ALTERNATE MATERIAL | ALUMINIUM, S.S, M.S |
| OPERATING TEMPERATURE | -30 C TO +100 C |
| FINISH | NICKEL PLATED, TIN, CHROME |
| SEAL MATERIAL | NATURAL / NITRILE |
| SEAL SHORE HARDNESS | 50 - 60 |
| ACCESSORIES | SHROUD, EARTH TAG, STOPPER, REDUCER, ADAPTORS (SUPPLIED SEPARATELY UPON REQUEST) |
| GLAND STANDARD | BS 6121, IS/IEC 60079-0:2011, IS/IEC 60079-1:2007 (Reaffirmed : 2012) |
| INGRESS PROTECTION | IP 66 AS PER IS/IEC 60529:2001 (Reaffirmed 2014) |
| APPROVAL | SECURE AEWP SERIES CABLE GLANDS ARE APPROVED BY CSIR-CENTRAL INSTITUTE OF MINING AND FUEL RESEARCH –DHANBAD |
- LOCK NUT
- ENTRY SEAL RING
- GLAND NIPPLE
- MS WASHER (3 NOS)
- INNER SEAL RING
- ARMOUR CLAMPING RING
- GLAND BODY
- OUTER SEAL
- COMPRESSION NUT
- SKID WASHER

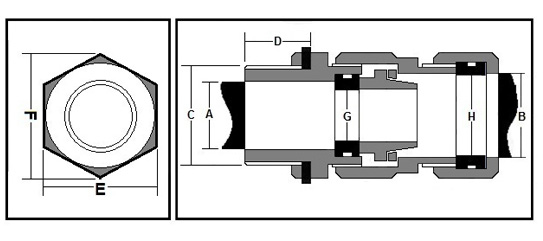

| No | SIZE AEWP SERIES | H | G | E | C (THREAD) | D | CABLE DIMENSION | |||
| (A/F) | (A/C) | ET | MM | (THREAD LENGTH) | A UNDER ARMOUR DIA | B OVERALL DIA |
||||
| 1 | AEWP 01SSA | 12.00 | 8.50 | 19.50 | 22.50 | 1/2"ET | M12 | 15 | 8.00 | 10.0 |
| 2 | AEWP 01SS | 14.00 | 9.00 | 22.00 | 25.00 | 3/4"ET | M20 | 15 | 8.00 | 12.5 |
| 3 | AEWP 01S | 17.50 | 11.00 | 25.00 | 29.00 | 3/4"ET | M20 | 15 | 10.00 | 16.5 |
| 4 | AEWP 01 | 19.50 | 14.50 | 27.50 | 32.00 | 3/4"ET | M20 | 15 | 12.50 | 18.5 |
| 5 | AEWP 01A | 19.50 | 14.50 | 27.50 | 32.00 | 1"ET | M25 | 15 | 12.50 | 18.5 |
| 6 | AEWP 02 | 21.00 | 16.00 | 29.00 | 34.00 | 1"ET | M25 | 15 | 14.00 | 20.0 |
| 7 | AEWP 02A | 21.00 | 16.00 | 29.00 | 34.00 | 3/4"ET | M20 | 15 | 14.00 | 20.0 |
| 8 | AEWP 03 | 23.50 | 18.00 | 31.00 | 36.00 | 1"ET | M25 | 15 | 16.00 | 23.0 |
| 9 | AEWP 04 | 27.50 | 21.00 | 37.00 | 43.00 | 1"ET | M25 | 15 | 19.00 | 26.0 |
| 10 | AEWP 04A | 27.50 | 21.00 | 37.00 | 43.00 | 1.1/4"ET | M32 | 15 | 19.00 | 26.0 |
| 11 | AEWP 05 | 31.50 | 25.00 | 41.00 | 47.00 | 1.1/4"ET | M32 | 15 | 23.00 | 30.0 |
| 12 | AEWP 05A | 31.50 | 25.00 | 41.00 | 47.00 | 1.1/2"ET | M40 | 15 | 23.00 | 30.0 |
| 13 | AEWP 06 | 34.00 | 28.00 | 46.00 | 53.00 | 1.1/2"ET | M40 | 15 | 26.00 | 33.0 |
| 14 | AEWP 06A | 34.00 | 28.00 | 46.00 | 53.00 | 1.1/4"ET | M32 | 15 | 26.00 | 33.0 |
| 15 | AEWP 07 | 38.00 | 31.00 | 50.50 | 58.00 | 1.1/2"ET | M40 | 15 | 29.00 | 37.0 |
| 16 | AEWP 08 | 42.00 | 36.00 | 56.00 | 64.00 | 2"ET | M50 | 15 | 34.00 | 41.0 |
| 17 | AEWP 09 | 47.00 | 41.00 | 59.00 | 67.00 | 2"ET | M50 | 15 | 39.00 | 46.0 |
| 18 | AEWP 010 | 53.00 | 45.00 | 66.00 | 76.00 | 2"ET | M50 | 20 | 43.00 | 52.0 |
| 19 | AEWP 010A | 53.00 | 45.00 | 66.00 | 76.00 | 2.1/2"ET | M63 | 20 | 43.00 | 52.0 |
| 20 | AEWP 011S | 57.50 | 51.00 | 74.00 | 85.00 | 2.1/2"ET | M63 | 20 | 49.00 | 56.0 |
| 21 | AEWP 011 | 61.50 | 55.00 | 79.00 | 92.00 | 2.1/2"ET | M63 | 20 | 53.00 | 60.0 |
| 22 | AEWP 012 | 68.00 | 62.00 | 84.00 | 97.00 | 3"ET | M75 | 20 | 60.00 | 66.0 |
| 23 | AEWP 013A | 74.00 | 67.00 | 90.00 | 103.00 | 3"ET | M75 | 20 | 65.00 | 72.0 |
| 24 | AEWP 013 | 79.00 | 73.00 | 99.00 | 113.00 | 3.1/4"ET | M82 | 20 | 71.00 | 78.0 |
| 25 | AEWP 014 | 86.00 | 80.00 | 105.00 | 122.00 | 3.1/4"ET | M90 | 20 | 78.00 | 84.0 |
| 26 | AEWP 015 | 96.00 | 89.00 | 116.00 | 134.00 | 4"ET | M100 | 20 | 87.00 | 94.0 |
| 27 | AEWP 016 | 106.00 | 103.00 | 130.00 | 150.00 | 4.1/2"ET | M110 | 25 | 100.00 | 104.0 |
